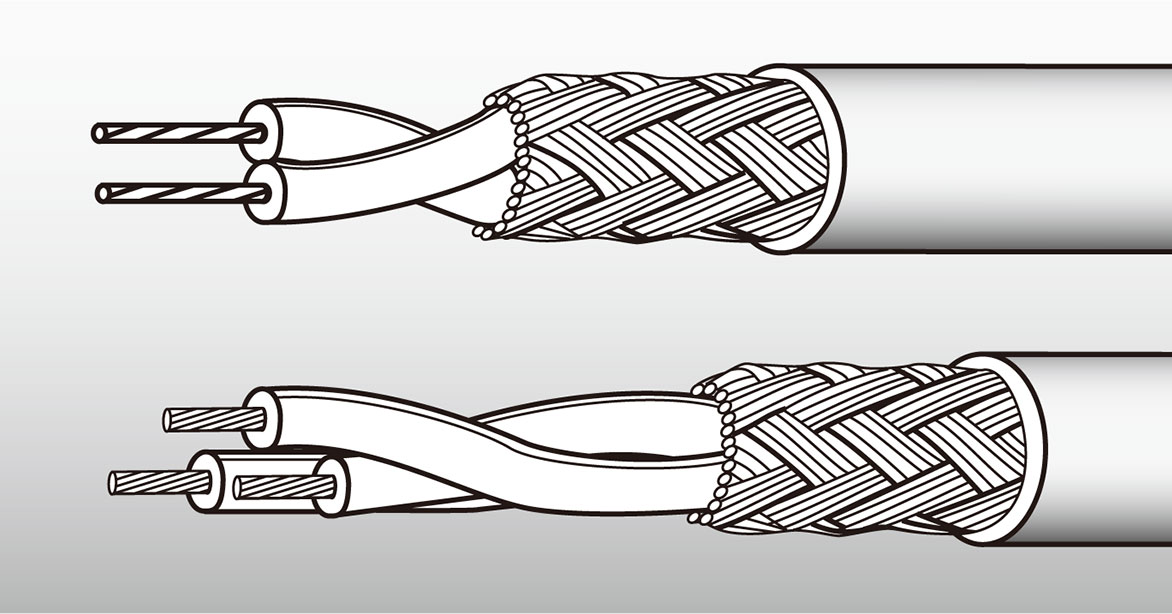

2,3-conductor shielded wire
UL STYLE 2685, CSA TYPE REW
2,3COND. XLPVC INSULATED SHIELDED WIRE
Application Standard
UL 758CSA C22.2 No.127
Rating
300V, 105℃
Application
Internal wiring of temperature raising equipment such as various electric and electronic
Features
- Cross-linked vinyl is used, so it is difficult to melt even when touched by a soldering iron.
- UL and CSA are shared.
- It has a thickness equivalent to UL 2405 and 2096 and is rated at 105℃, so it can be used as a substitute for UL 2127 and 2128.
Structure and performance
| UL STYLE CSA TYPE (No. of Cond.) |
Tinned Copper Cond. | XLPVC Ins. | Tinned Copper Shield |
XLPVC Sheath | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | |||||
| 2685 REW (2-Cond.) |
26 | 7/0.16 | 0.48 | 0.48 | 1.44 | Braided Braid |
0.45 | 4.33 | 141 | 3.6 | 2000 |
| 24 | 11/0.16 | 0.62 | 0.49 | 1.60 | 0.54 | 4.75 | 93.3 | 4.9 | |||
| 22 | 17/0.16 | 0.76 | 1.74 | 5.00 | 58.7 | 6.7 | |||||
| 20 | 26/0.16 | 0.95 | 1.93 | 5.41 | 39.5 | 8.7 | |||||
| 18 | 41/0.16 | 1.19 | 0.53 | 2.24 | 0.75 | 6.55 | 25.0 | 11.4 | |||
| 2685 REW (3-Cond.) |
26 | 7/0.16 | 0.48 | 0.48 | 1.44 | 0.50 | 4.65 | 141 | 3.4 | 2000 | |
| 24 | 11/0.16 | 0.62 | 0.49 | 1.60 | 5.00 | 93.3 | 4.7 | ||||
| 22 | 17/0.16 | 0.76 | 1.74 | 0.55 | 5.40 | 60.4 | 6.4 | ||||
| 20 | 26/0.16 | 0.95 | 1.93 | 0.60 | 5.90 | 39.5 | 8.3 | ||||
| 18 | 41/0.16 | 1.19 | 0.53 | 2.24 | 0.70 | 6.80 | 25.0 | 10.8 | |||
* The reference allowable current value is for a single wire in the air at an ambient temperature of 75℃.
- U S E
- Internal Wiring of Electronic Equipment.
