2,3-conductor shielded wire
UL STYLE 2128, CSA TYPE TEW

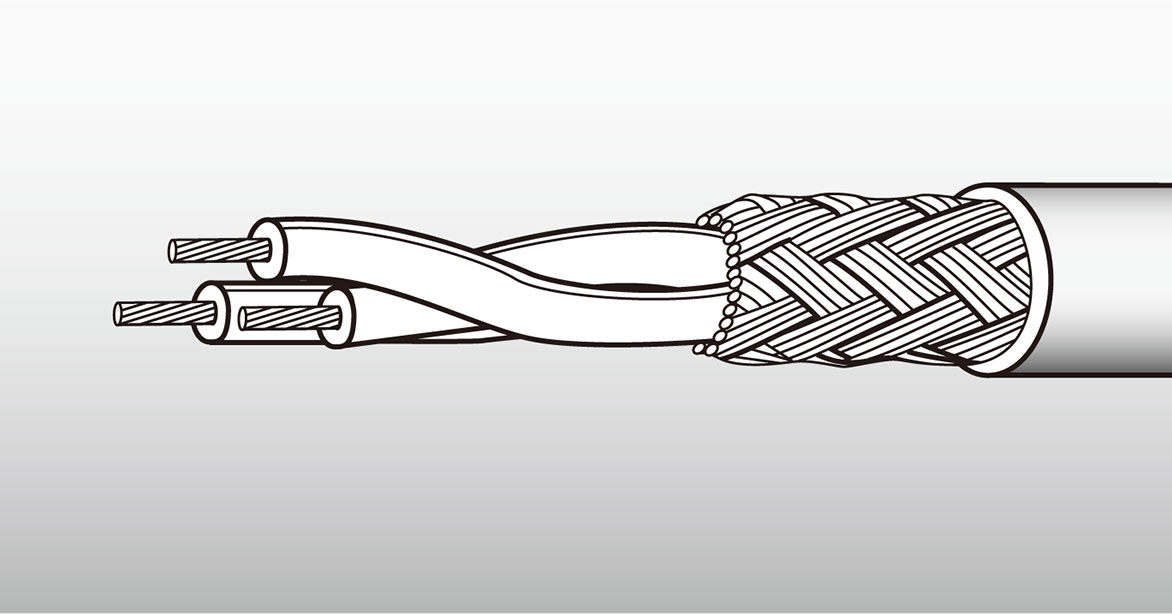

3COND. HEAT-RESISTANT PVC INSULATED SHIELDED WIRE 3-conductor shielded wire

Application Standard
UL 758CSA C22.2 No.127
Rating
600V, 105℃
Application
Internal wiring for various electrical and electronic devices
Features
- UL and CSA are shared.
- It can be used for general electric and electronic equipment under 600V and 105℃.
Structure and performance
UL STYLE CSA TYPE |
Tinned Copper Cond. | PVC Ins. | Tinned Copper Shield |
PVC Sheath | Max. Cond. Resistance (20℃ Ω/km) |
Allowable Current (for reference) (A) |
Dielectric Strength (AC V/min.) |
||||
---|---|---|---|---|---|---|---|---|---|---|---|
Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | |||||
2128 TEW |
24 | 11/0.16 | 0.62 | 0.80 | 2.22 | Braided Braid |
0.90 | 7.15 | 93.3 | 4.7 | 2000 |
22 | 17/0.16 | 0.76 | 2.36 | 7.55 | 60.4 | 6.4 | |||||
20 | 26/0.16 | 0.95 | 0.81 | 2.56 | 8.00 | 39.5 | 8.3 | ||||
18 | 41/0.16 | 1.19 | 2.80 | 0.94 | 8.55 | 24.3 | 10.8 | ||||
16 | 54/0.18 | 1.53 | 3.15 | 0.93 | 9.30 | 15.0 | 14.4 |
* The reference allowable current value is for a single wire in the air at an ambient temperature of 75℃.
- U S E
- Internal Wiring of Appliances or Electronic Equipment.
