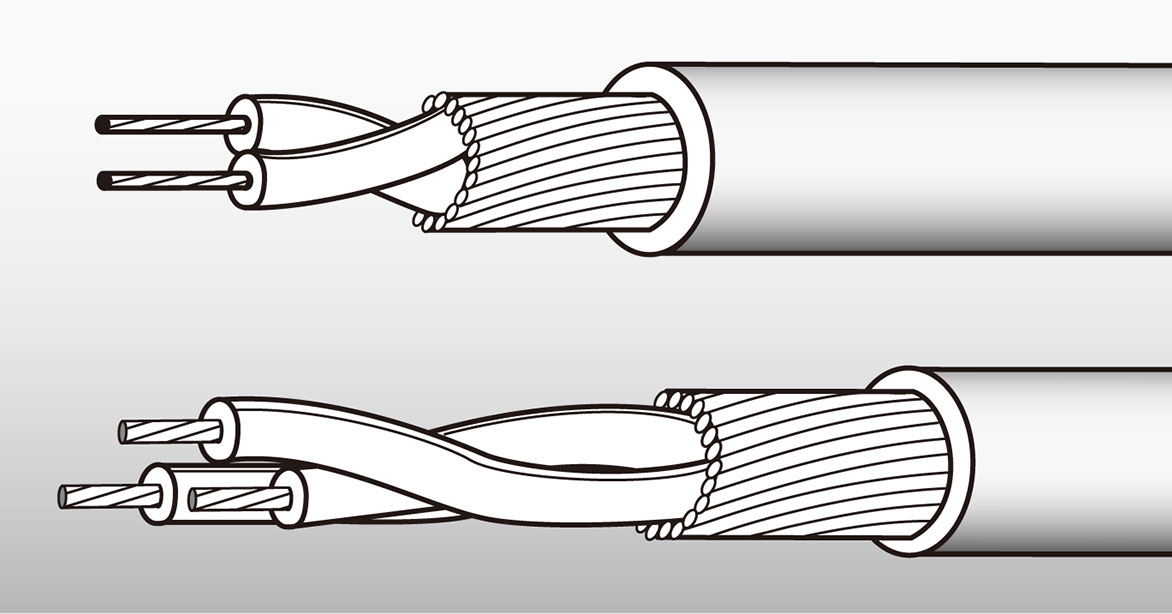

2,3-conductor shielded wire
UL STYLE 2623
2,3COND. IRRADIATED FOAM PE-INSULATED SHIELDED WIRE
Application Standard
UL 758Rating
30V, 80℃
Application
Internal wiring of audio and video equipment
Features
- Cross-linked foamed polyethylene insulation is used.
1) Less thermal deformation and does not melt when touched by a soldering iron.
2) As for flammability, only the finished products pass the UL and Electrical Appliance and Material Control Law vertical combustion tests.
3) Since the dielectric constant is small, it is a shield wire with a small outer diameter and low capacitance.
2) As for flammability, only the finished products pass the UL and Electrical Appliance and Material Control Law vertical combustion tests.
3) Since the dielectric constant is small, it is a shield wire with a small outer diameter and low capacitance.
Structure and performance
| UL STYLE(No. of Cond.) | Tinned Copper Cond. | Insulation | Tinned Copper Shield |
PVC Sheath | Max. Cond. Resistance (20℃ Ω/km) |
Capacitance (1kHz pF/m) |
Dielectric Strength (AC V/min.) |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size (AWG) | Composition (No./mm) |
Dia. (mm) | Thick. (mm) | Dia. (mm) | Thick. (mm) | Dia. (mm) | |||||
| 2623 (2-Cond.) |
28 | 7/0.13 | 0.38 | 0.26 | 0.9 | Horizontal Warp |
0.29 | 2.57 | 228 | 105 or less | 500 |
| 26 | 7/0.16 | 0.48 | 0.25 | 1.0 | 0.30 | 2.80 | 141 | ||||
| 24 | 7/0.20 | 0.60 | 1.1 | 0.33 | 3.10 | 88.0 | 120 or less | ||||
| 2623 (3-Cond.) |
28 | 7/0.13 | 0.38 | 0.26 | 0.9 | 0.33 | 2.80 | 228 | 95 or less | 500 | |
| 26 | 7/0.16 | 0.48 | 0.25 | 1.0 | 0.35 | 3.10 | 141 | ||||
| 24 | 7/0.20 | 0.60 | 1.1 | 3.30 | 87.7 | 110 or less | |||||
- U S E
- Class 2 Wiring of Electronic Equipment.
