High-precision, high-speed transmission cable
Usage
-
Semiconductor inspection equipment
Large computers
Communication equipment
FA equipment
Various digital equipment
Cable specification
-

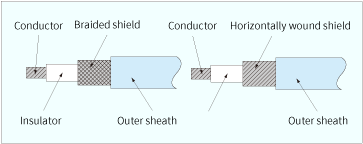

single end
●Features■Stability of characteristic impedance and propagation delay time
●Porous PTFE insulator specifications■Excellent attenuation characteristics
-3dB/m @6GHz (#28 braided shield product)■Rated temperature: -55 to +200℃
●Specifications for cross-linked foamed polyethylene insulation■Lower cost than porous PTFE
-

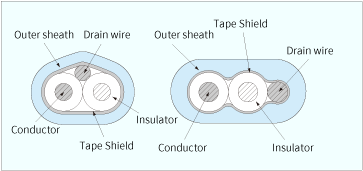

Differential
●Features■Stable propagation delay time realized by highly foamed polyethylene extrusion molding technology
■Reduced intra-pair skew
10ps/m (differential type)■Lineup of UL standard certified products
■Halogen-free type is also available.

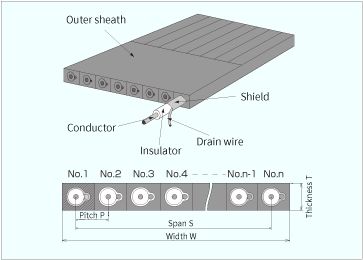

multi flat
●Features■Achieves stable propagation delay time with highly foamed polyethylene extrusion molding technology
■A cable in which thin coaxial cables are arranged in parallel and only the terminal part is flattened
We will propose the cable according to the application.
Please feel free to contact us from the initial stage of development.
