High-precision, high-speed transmission cable assembly
Hirakawa board-in cable series A cable connector assembly for board-to-board connection processed using original connection technology and molding.
-
Features
●1. Flexible specificationsCables can be selected according to transmission characteristics such as impedance and propagation delay time, as well as length and color.
●2. Excellent transmission characteristicsConnections are made using dedicated equipment and processing methods, which are highly effective in stabilizing impedance/propagation delay time and reducing voltage loss.
●3. Outstanding connection reliabilityThe connection between the cable and the plug terminal is processed using our original electric welding technology, so it is not affected by the solder heat generated during the wiring work.

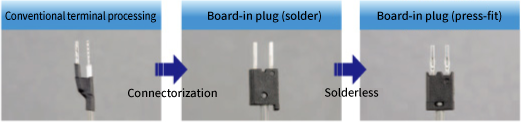

In addition, the joints are integrally molded, so they are resistant to stress caused by bending.●4. Two advantages: environmental friendliness and reduced man-hoursThe press-fit type that does not use solder can be inserted with a simple jig. At the same time, the work man-hours are greatly reduced.
Hirakawa 2mmHM Cable Application
-
Features
1.By implementing a wafer type, it is possible to freely stack 1 to 25 sheets.
2.Three types of connectors corresponding to transmission characteristics are available.
(Non-shielded type, shielded type, shielded type with side contact) -

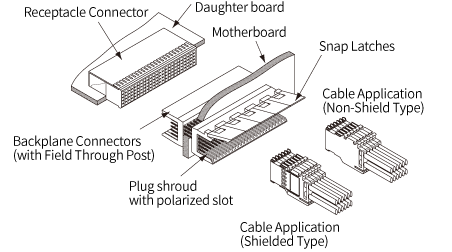

Basic configuration
